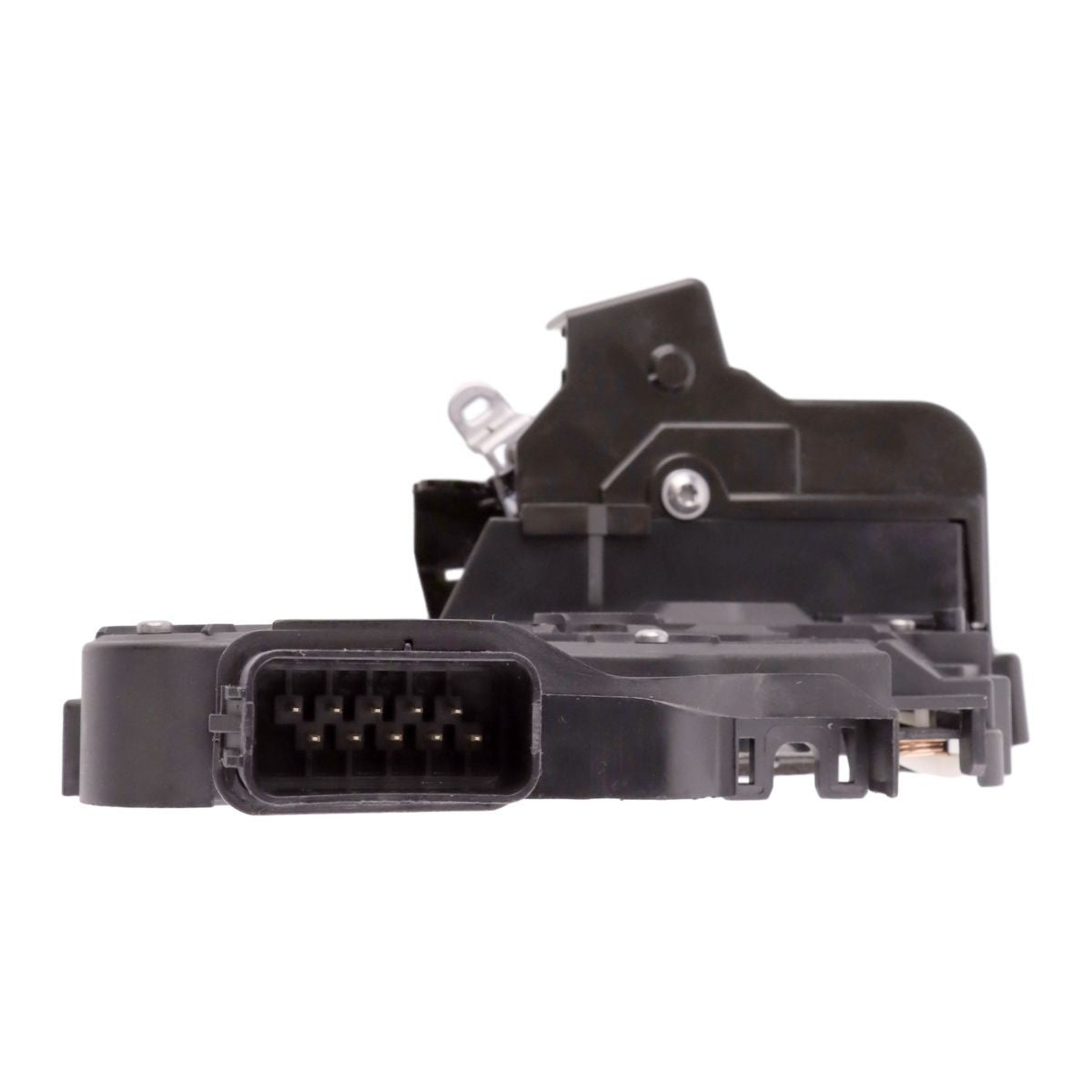

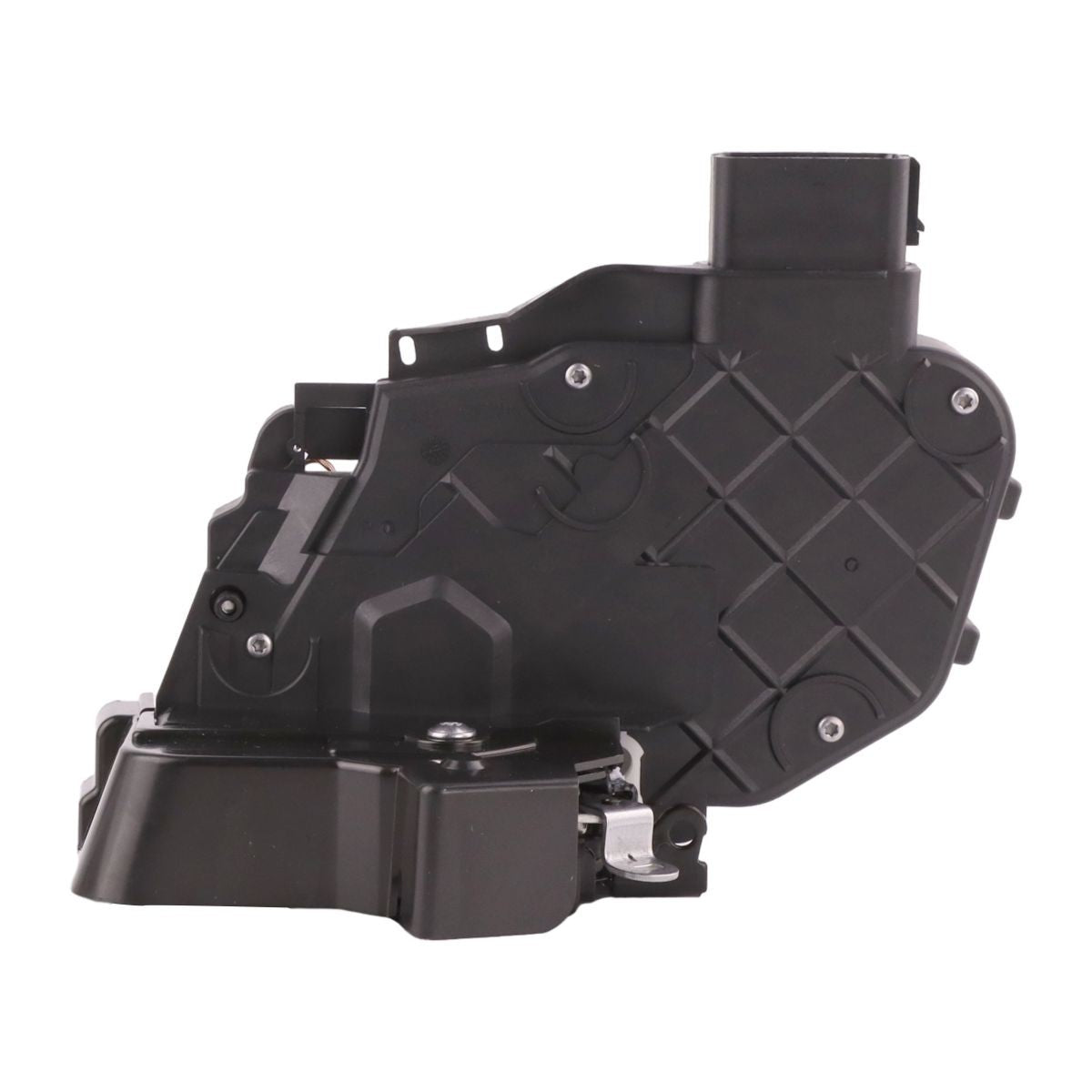

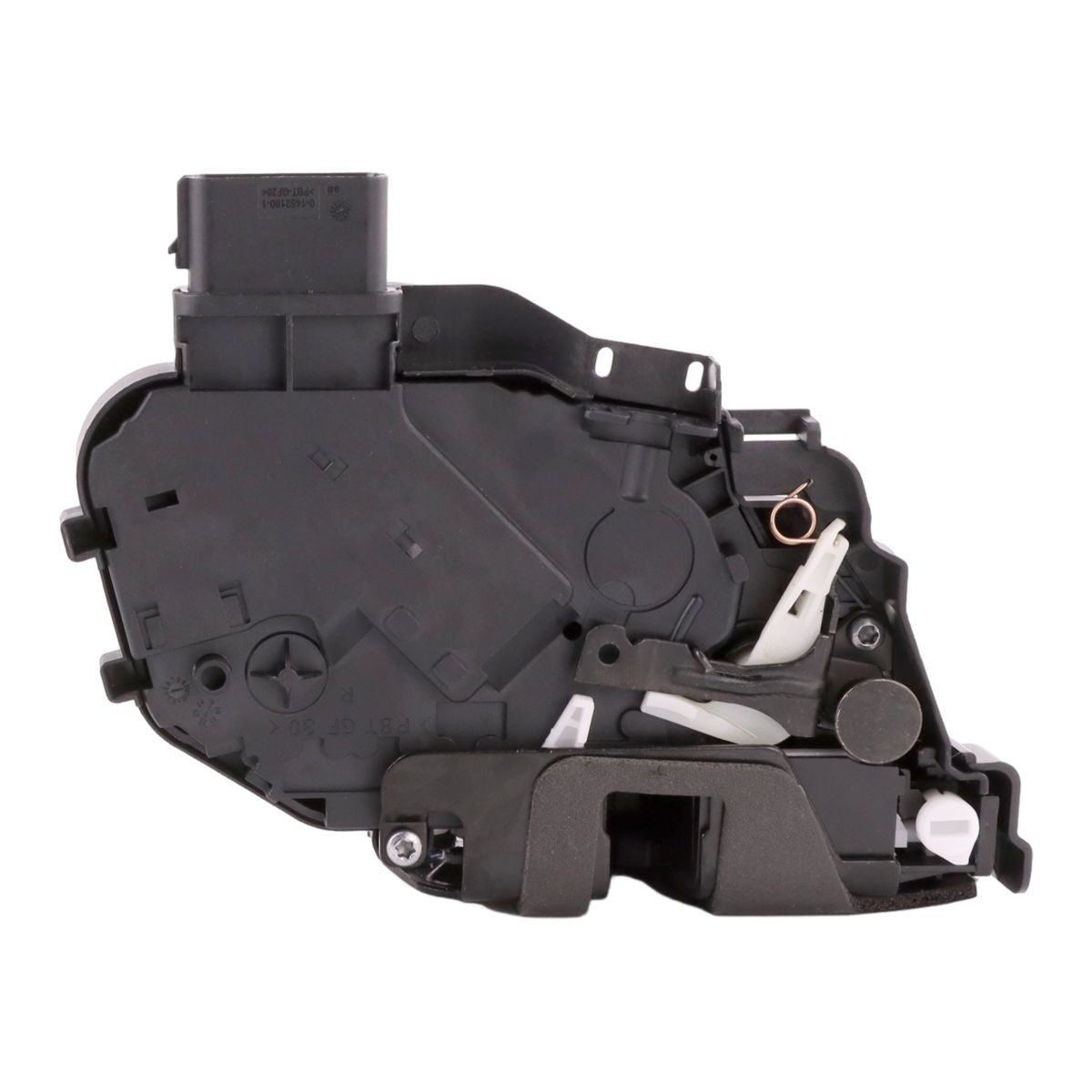

Door Lock Actuator Right Rear (Drivers) – Discovery, Evoque, RR Sport (LR091360)

This door lock actuator is a direct replacement for Genuine Part Number Reference: LR091360. Also known as a door catch, door latch, central locking motor or door lock mechanism, it is the complete right rear, drivers side door lock assembly with the actuator motor, microswitches and child safety lever built in, and uses a 10 pin connector. Replacing a failed lock cures a door that will not open from either handle, central locking that skips one door, and interior light or alarm faults caused by a false door-open signal.

Part Details:

• Direct replacement for OEM part number LR091360
• Fits the right rear, drivers side door
• 10 pin connector
• Built with double sealing
• Complete assembly with integrated central locking actuator motor
• Child safety lock lever included
• Also supplied in place of part numbers LR011302, 7H5A26412AA, 7H5A26412AB, 7H5A26412AC, 7H5A26412AD, 7H5A26412AE, FQM000144, FQM000146, FQM500081 and FQM500082
• Manufactured to meet or exceed OEM specifications
• Factory-style fit and function

Compatible With:

• Land Rover Discovery III (L319) – 2004 to 2009
• Land Rover Range Rover Sport (L320) – 2005 to 2013
• Land Rover Freelander 2 (L359) – 2006 to 2014
• Land Rover Discovery IV (L319) – 2009 onwards
• Land Rover Range Rover Evoque (L538) – 2011 to 2019
• Land Rover Range Rover Evoque Convertible (L538) – 2016 to 2019
• Land Rover Range Rover Evoque (L551) – 2018 onwards

Year Range:
2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019

Land Rover fitted more than one rear door lock variant across these models depending on the central locking and keyless entry specification. Please enter your vehicle registration number at checkout so we can confirm the correct lock for your car before dispatch.

This is an aftermarket replacement part, not a genuine Land Rover component.
